Available models:
ATOM-N270, ATOM-N2600, i3 / i5 / i7
- FANLESS MICRON-II 6.4" or 12" option
keyboard/touch-screen
- FANLESS MICRON-II models available
with 6.4" 8.4" 10.4" 12.1" 15.1"
PASS on
IMAGE TO ENLARGE |

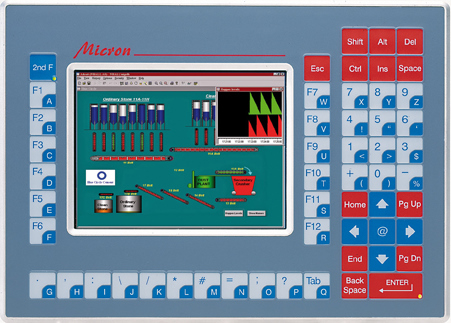

MICRON-II/6.4" with XPe
 Download
PDF: Micron.pdf
- 6.4 TFT panel 640 X 480 VGA
resolution
- VIA EDEN (PIII) 733 MHz
- 1 x 144-pin SO-DIMM memory up to
256MB
- O/S support for Windows
XPe/9x/2K/NT/XP PRO/LINUX/QNx
- Rugged 2.5" Hard drive or FLASH DISK
up to 128Gb included
- NEMA 4/4X front panel with
customized bezel including full input
membrane keypad
- Options include Flash Disk, NEMA 4
membrane keyboard/mouse/TS
- PC/104 bus expansion
- 4 X RS232 COM ports (1 RS422/RS485),
LPT, 10-BaseT LAN, 2 USB, PS2 Kb/Mouse
ports
- Less than 3" in depth (11" X 7.99 "
outside dimensions)
- Integrated +12 Vdc,+24 Vdc or 85-240
Vac power supply
- 40,000 MTBF with 3 Year warranty
|
PASS on
IMAGE TO ENLARGE |

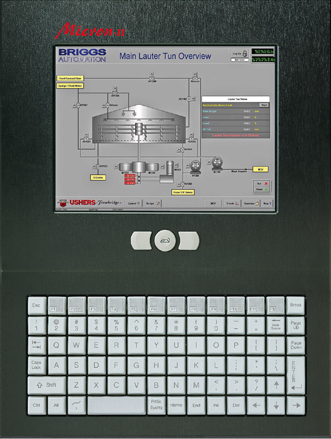

MICRON-II / TFT 12"
with complete membrane KEYBOARD and
TOUCH SCREEN
IP65-NEMA4/4X front panel
Download
: MICGB1.jpg
(445Kb)
Download
: MICGB2.jpg
(447Kb)
|
PASS on
IMAGE TO ENLARGE |
MICRON-II/ BOX
SIDE CONNECTORS
- available
MICRON-II/box systems
wall-mounting
|
